주요스펙

- 악세사리 : Carrying case, 연결 케이블, Test lead


Additional Features
- Optical to Electric Converter Head
- DC to 6.4 GHz optical bandwidth
- 355 ps optical impulse response (FWHM) with the SD-24 and SD-26,
- 360 ps optical impulse response (FWHM) with the SD-22
- 1000 nm to 1700 nm Spectral Response
- Mean Optical Power Monitor function

Optical-to-Electrical Converter Head Pulse Characteristics
- Response Bandwidth: DC – 6.4 GHz
- Wavelength Range: 1000 to 1700 nm
- Optical Impulse Response Speed: 55 ps max Full Width Half Maximum
- Conversion Factor: 25 mW/V
- Conversion Gain: 40 mV/mW
- Equivalent Display Noise: with SD-22 10 µWRMS typical
- With SD-24/SD-26 33 µWRMS typical (unity dot response); <15 µWRMS typical (with smoothing)
- Aberrations (Step Response): <15% peak to peak in the first 400 ps following pulse input
- Linear Response Range: <25 mW peak power; <5 mW mean power
- Maximum Nondestructive Input: 75 mW peak power; 10 mW mean power

Optical-to-Electrical Converter Head Power Meter Characteristics
- Dynamic Range: 5 nW to 5 mW
- Linear Response Range: Range 1: <5 µW mean, <25 mW peak; Range 2: <5 mW mean, <25 mW peak
- Sensitivity: Range 1: 1 V/mW; Range 2: 1 V/µW
- Environmental and Mechanical Characteristics
- Weight: 205 g (0.45 lb)
- Height: 71 mm (2.9 inches)
- Width: 23 mm (0.95 inch)
- Depth: 95 mm (3.9 inches)
- Ambient Temperature: Operating: 0° C to 50° C (32° F to 122° F); Nonoperating: –55° C to +75° C (–67° F to +167° F)
- Altitude: Operating: to 4.5 km (15,000 ft.); Nonoperating: to 15 km (50,000 ft.)
- Humidity: to 95% relative humidity at up to 50° C (122° F)
- Electromagnetic Compatibility: Meets FCC Part 15J Class B

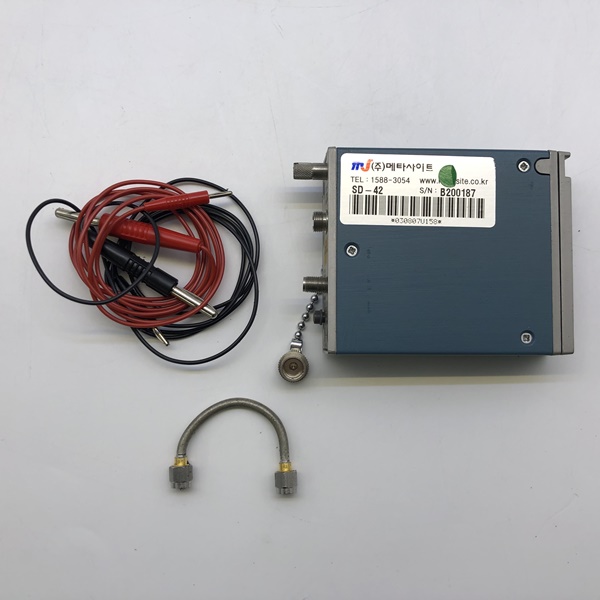

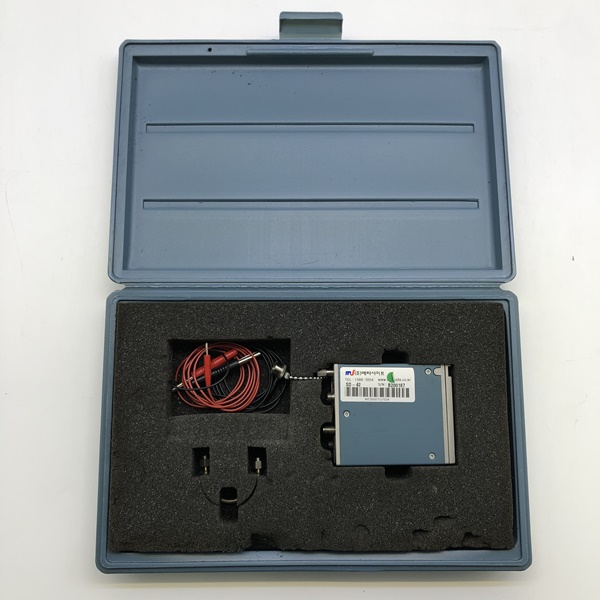

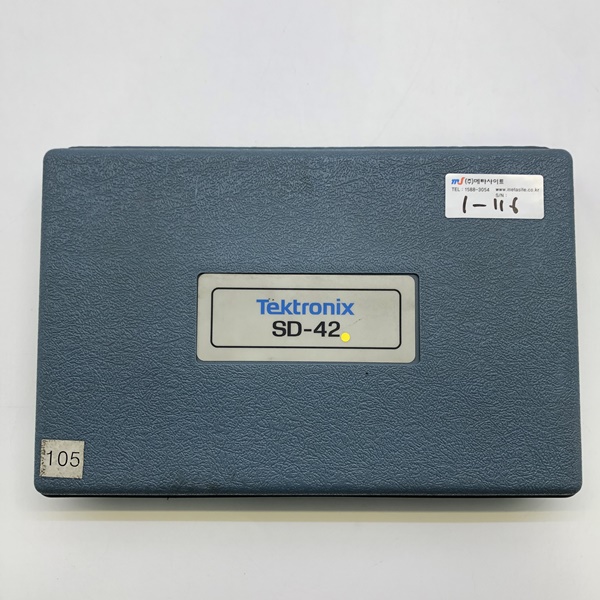

본 제품의 실제 사진입니다.
