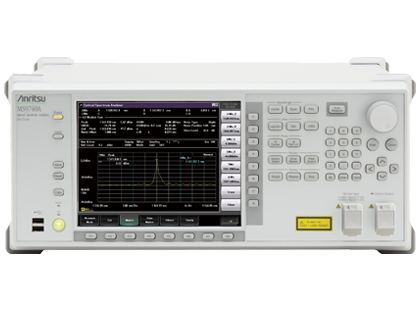

광 스펙트럼 분석기 (OSA) MS9740A (단종)
MS9740A는 600 nm의 1750 nm의 커버 벤치 탑 광 스펙트럼 분석기입니다.MS9740A는 고성능 광학 해상도 및 장치 및 부품 제조 업체의 요구 사항을 지원하는 고속 측정을 제공합니다.
- • 파형 데이터는 0.2 초 내에 측정 및 외부 제어 장치로 전송할 수 있습니다.
- • 광학 활성 장치를 검사하는 전용 응용 프로그램
- • 비용대비 우수한 기능
- • 다이나믹 레인지의 성능 ≥ 60 dB (최고 파장으로 부터 0.4 nm)
- • 30 pm 최소 해상도 대역폭
- • SM 및 MM 섬유 지원
- • 경량이면서 50% 더 적은 전력 소비량
대체품 (이미지를 클릭해주세요.)
| 이미지 | 품명 | 모델 |
|---|---|---|
 |
광 스펙트럼 분석기 | MS9740B |
제품 사양
| Specifications | Details |
|---|---|
| Applicable optical fiber | 10 μm/125 μm SM fiber (ITU-T G.652), 50 μm/125 μm GI fiber |
| Optical connector | User replaceable: FC, SC, ST, DIN, LC |
| Wavelength measurement range | 600 nm to 1750 nm |
| Wavelength accuracy *1 | ±20 pm (1520 nm to 1620 nm, Resolution: 0.03 to 0.2 nm) *2 |
| ±100 pm (1520 nm to 1620 nm, Resolution: 0.5, 1.0 nm) *2 | |
| Setting resolution | 0.03, 0.05, 0.07, 0.1, 0.2, 0.5, 1.0 nm (RBW: 3 dB optical filter: transmission bandwidth) |
| Maximum input power | +23 dBm (Optical ATT: On) |
| Dynamic range *1 | High dynamic range: 60 dB (0.4 nm from peak wavelength) |
| Normal dynamic range: 58 dB (0.4 nm from peak wavelength) | |
| [Resolution: 0.05 nm, 1550 nm, Optical ATT: Off, 20° to 30°C] | |
| Sweep | Sweep width: 0.2 nm to 1200 nm, 0 nm |
| Sweep speed: ≤0.2 sec. (Span 5 nm) | |
| [Resolution: 0.1 nm, VBW=10 kHz, Normal dynamic range, center 1550 nm, sweep start to stop, no optical input, sampling point: ≤501] | |
| Display | 800 × 600 dots, 8.4 inch SVGA color LCD |
| Dimensions and Mass | 426 (W) × 177 (H) × 350 (D) mm (excluding projections) ≤15.0 kg (without option) |
옵션 & 액세서리
| Standard Accessories | |
|---|---|
| MS9740A Operation Manual (CD) | 1 pc |
| Power Cord | 1 pc |
| Options | |
|---|---|
| MS9740A-001 | GPIB Interface |
| MS9740A-009 | Multimode Fiber Interface (50/62.5 μm) |
| MS9740A-037 | FC Connector |
| MS9740A-038 | ST Connector |
| MS9740A-039 | DIN 47256 Connector |
| MS9740A-040 | SC Connector |
| Optional Accessories | |
|---|---|
| J0617B | Replaceable Optical Connector (FC-PC) |
| J0618D | Replaceable Optical Connector (ST) |
| J0618E | Replaceable Optical Connector (DIN) |
| J0619B | Replaceable Optical Connector (SC) |
| J1530A | SC Plug-in Converter (UPC(P)-APC(J)) |
| J1532A | FC Plug-in Converter (UPC(P)-APC(J)) |
| J0635A | FC · PC-FC · PC-1M-SM (Optical Fiber Cord, 1.0 m) |
| J0635B | FC · PC-FC · PC-2M-SM (Optical Fiber Cord, 2.0 m) |
| J0635C | FC · PC-FC · PC-3M-SM (Optical Fiber Cord, 3.0 m) |
| J0660A | SC · PC-SC · PC-1M-SM (Optical Fiber Cord, 1.0 m) |
| J0660B | SC · PC-SC · PC-2M-SM (Optical Fiber Cord, 2.0 m) |
| J0660C | SC · PC-SC · PC-3M-SM (Optical Fiber Cord, 3.0 m) |
| J0893A | FC · PC-FC · PC-1M-GI (Optical Fiber Cord, 1.0 m) |
| J0893B | FC · PC-FC · PC-2M-GI (Optical Fiber Cord, 2.0 m) |
| J0839A | SC · PC-SC · PC-1M-GI (Optical Fiber Cord, 1.0 m) |
| J0839B | SC · PC-SC · PC-2M-GI (Optical Fiber Cord, 2.0 m) |
| J1534A | LC-SC Plug-in Converter (for SM, SC(P)-LC(J)) |
| Z0914A | Ferrule Cleaner |
| Z0915A | Replacement Reel for Ferrule Cleaner |
| Z0284 | Adapter Cleaner (Stick Type) |
| B0640C | Carrying Case |
| B0671A | Front Cover for 1MW4U |
| B0641A | Rack Mount Kit |
| J0008 | GPIB Cable, 2.0 m |
| Z0541A | USB Mouse |
| Z0975A | Keyboard (USB) |
| G0350F | Programmable Optical Attenuator (SM9, FC/UPC) |
| G0350S | Programmable Optical Attenuator (SM9, SC/UPC) |
| G0351F | Programmable Optical Attenuator (SM9, FC/UPC, Power Monitor) |
| G0351S | Programmable Optical Attenuator (SM9, SC/UPC, Power Monitor) |
| G0344F | Optical Switch (1×4, SM9, FC/UPC) |
| G0344S | Optical Switch (1×4, SM9, SC/UPC) |
| G0345F | Optical Switch (1×16, SM9, FC/UPC) |
| G0345S | Optical Switch (1×16, SM9, SC/UPC) |
